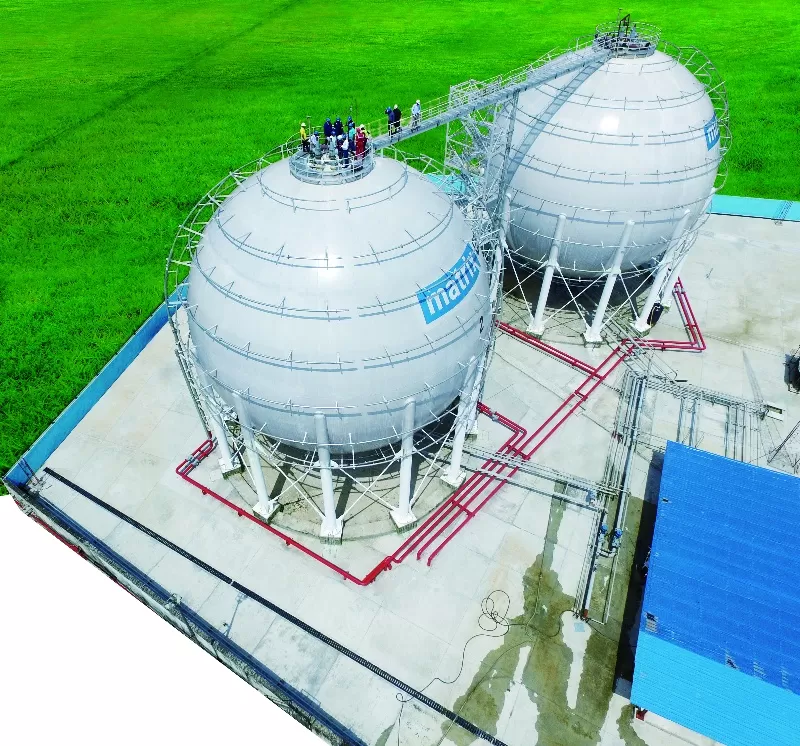

The LPG spherical tank is a fixed-pressure vessel at normal temperature, with a single-layer tank structure, dedicated to storing liquefied petroleum gas, using low-alloy steel plates for the vessel, with excellent performance, safety and reliability. Spherical storage tanks have a smaller surface area, greater corrosion resistance, and are moisture and corrosion resistant.
LPG Spherical Tank Certifications
What certifications do we own?
We have China A2, A3, C2, SAD and American ASME U U2 professional design and manufacturing qualifications, and meet DOSH certification, GOST certification and other requirements.
LPG Spherical Tank Main functions
Key Features
The main material is made of low-alloy steel plates for containers, and safety accessories can be selected according to different customer needs. International and domestic well-known brands, professional design, manufacturing and installation teams, complete quality assurance system, volume series covering 200m³~10000m³, can be customized according to customer needs .
What is the purpose of the LPG Spherical Tank?
This product is used for large-capacity, pressure-bearing spherical storage vessels.
What benefits will you get from LPG Spherical Tank?
Compared with other storage tanks, the use of spherical tanks can greatly reduce the consumption of steel, generally saving 30% to 45%; in addition, the spherical tank has a smaller area and a small amount of basic engineering.
LPG Spherical Tank Use
Where can this LPG Spherical Tank be used?
This product can be used in areas where the ambient temperature is -50℃~50℃, and it can be used in various regions such as Asia, Africa, and South America.
Who might use this LPG Spherical Tank?
LPG trading companies, gas station operators, and large petrochemical companies are potential customers of this product.
LPG Spherical Tank Use range
Suitable for mixing liquefied petroleum gas, propane, commercial propane, commercial propane butane mixture, propylene, anhydrous ammonia and other C4 mediums, etc.
Some common uses of the LPG Spherical Tank?
Long-term storage
LPG Spherical Tank Advantages
Primary advantages
High quality, safe and reliable;
Why should I buy this product?
Preliminary professional consultation, professional design, manufacturing and installation experience, reliable quality and service guarantee. Comprehensive and full-process EPC services.
-What makes this product different to competitor products?
High cost performance, quality assurance, high responsibility and perfect after-sales service system.
Small surface area
Spherical Tanks are typically used to store liquids and pressurized gases below ambient temperature, such as ammonia, propylene, LPG, butadiene, and others. Most (or many) spheres operate at low temperatures, with a lower limit of -50°C (-58°F). Gases are stored at pressures below their liquefaction temperature.
The main advantage of the Spherical Tank construction is that when storing pressurized gases, stress concentrations within the sphere are minimized because the stress resistance is uniform over the entire surface. Another advantage is the reduced outer surface for a given storage volume compared to all other possible shapes.
Due to the high temperatures in cold storage and the often high ambient temperatures and humidity outside the Spherical Tank, the key requirement is to have a well-designed and installed insulation system to maintain a consistent temperature inside the sphere.
High corrosion resistance
Dimensional stability and compatibility with substrate expansion/contraction.
As the Spherical Tank is put into service and cooled to operating temperature, the surface of the sphere shrinks and the diameter of the sphere decreases. The insulation system must be designed to accommodate this dimensional change.
Control of permeability and hygroscopicity.
The temperature difference between the object and its surroundings is the cause of surface condensation. This, coupled with moisture entering from the outside by other means, can have a serious adverse effect on the efficiency and safety of the Spherical Tank.
High safety
Control heat gain.
By preventing heat transfer, you will be able to store content as efficiently as possible by keeping energy requirements and operating costs low.
Risk of chemical absorption.
If a leak or spill occurs, the insulation may also absorb the contents of the Spherical Tank, which typically contains flammable liquids with low flash points, posing a significant fire and explosion hazard. The use of open cell or fiber insulation systems may have a serious adverse effect on the safety of the Spherical Tank, resulting in the absorption of flammable liquids and a core-suction hazard, which could result in a spontaneous combustion fire.
Our LPG Spherical Tank service
Our Policy
HONGTU has the design & fabrication capacity of LPG stationary storage tanks including above-ground tanks, underground tanks and mounded tanks etc. All kinds of tanks could be customized according to the customers' requirements.
Unique deliveries
EXW/FOB/CFR/CIF/DAP
Shipped by bulk vessel
Warranty information
One year warranty after delivery
LPG Spherical Tank Payment method
What payment method do we have?
T/T,L/C
LPG Spherical Tank Export cases
Main markets
Asia, Southeast Asia, Africa, South America, North America
LPG Spherical Tank Specifications
Product specifications
Technical parameters
| Design Standard | ASME VIII-2 | |||||
| Total Capacity m³ | 1500 | 2000 | 3000 | 5000 | 6000 | 8000 |
| Medium | LPG | LPG | LPG | LPG | LPG | LPG |
| *Payload KG | 750 | 1000 | 1500 | 2500 | 3000 | 4000 |
| Shell Material | SA516M | SA537 CL.1 | SA537 CL.1 | SA537 CL.2 | SA537 CL.2 | SA537 CL.2 |
| Filling Ratio | 0.85 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Tank Net Weight KG | 258610 | 288617 | 431223 | 636868 | 732400 | 893620 |
| Design Pressure MPa | 1.77 | 1.77 | 1.77 | 1.8 | 1.77 | 1.42 |
| Working Pressure MPa | 1.57 | 1.4 | 1.57 | 1.7 | 1.57 | 1.2 |
| MAWP MPa | 1.77 | 1.77 | 1.77 | 1.8 | 1.77 | 1.42 |
| Design Temperature ℃ | -20/50 | -20/50 | -20/50 | -40/50 | 50 | -30/50 |
| Working Temperature ℃ | -18/40 | 35 | -15~40 | -35~40 | 40 | -15/40 |
| Corrosion Allowance MM | 1.0 | 1.5 | 1.5 | 1.5 | 1.0 | 2.0 |
| NDT | YES | YES | YES | YES | YES | YES |
| Hydraulic Test Pressure MPa | 2.53 | 2.54 | 2.54 | 2.58 | 2.54 | 2.04 |
| Air Tightness Test Pressure MPa | 1.77 | 1.77 | 1.77 | 1.8 | 1.77 | 1.42 |
| PWHT | YES | YES | YES | YES | YES | YES |
| Wind Pressure Pa | 1035 | 1500 | 1500 | 2000 | 1500 | 3200 |
| Snow Pressure Pa | -- | -- | -- | 300 | -- | -- |
| Seismic Intensity | 7 Degree | 7 Degree | 7 Degree | 8 Degree | 8 Degree | 8 Degree |
| Field Soil Category | II | II | II | II | II | II |
| *Please note that different medium component will cause different density and different payload.**Please contact for more different kinds of capacity and standard tanks. | ||||||
| Design Standard | ASME VIII-1 | ASME VIII-2 | ||
| Total Capacity m³ | 600 | 974 | 2000 | 2000 |
| Medium | C4 | Isobutane | Ethylene | Ethane |
| *Payload KG | 278400 | 1809 | 1012600 | 747000 |
| Filling Ratio | 0.8 | 0.9 | 0.83 | 0.83 |
| Material | SA537 CL.2 | SA516M GR485 | SA203 GR.F | SA203 GR.F |
| Net Weight KG | 69628 | 109500 | 374367 | 399963 |
| Design Pressure MPa | 0.7/-0.03 | 0.79 | 1.98 | 2.15 |
| Working Pressure MPa | 0.47 | 0.6 | 1.65 | 1.775 |
| Design Temperature ℃ | -39/65 | -20/50 | 120 | 120 |
| Working Temperature ℃ | 42.5 | 40 | -50~-10 | -50~-10 |
| Corrosion Allowance MM | 2.5 | 1.5 | 4.0 | 4.0 |
| Wind Pressure Pa | 600 | 800 | 300 | 300 |
| Snow Pressure Pa | 400 | 0 | 1800 | 1800 |
| Seismic Intensity | 7 Degree | 8 Degree | 6 Degree | 6 Degree |
| Field Soil Category | II | II | II | II |
| *Please note that different medium component will cause different density and different payload.**Please contact for more different kinds of capacity and medium tanks. | ||||
LPG Spherical Tank Components
Package included
Nude Packing
Accessories or Parts
Accessories or Parts will be packed in Steel or Wooden Cases if needed.
