Regasfication Regulating Metering Station

What Is an LNG Regasification, Regulating and Metering Station?

An LNG regasification, regulating and metering station converts liquefied natural gas into natural gas and prepares it for downstream delivery.

In the CIMC ENRIC system, LNG passes through an ambient air vaporizer and a water-bath electric heating vaporizer. The resulting natural gas then goes through pressure regulation, metering and odorization before being supplied to a downstream gas user or pipeline.

A single equipment set can be configured for gas supply capacities from 100 to 100,000 Nm³/h.

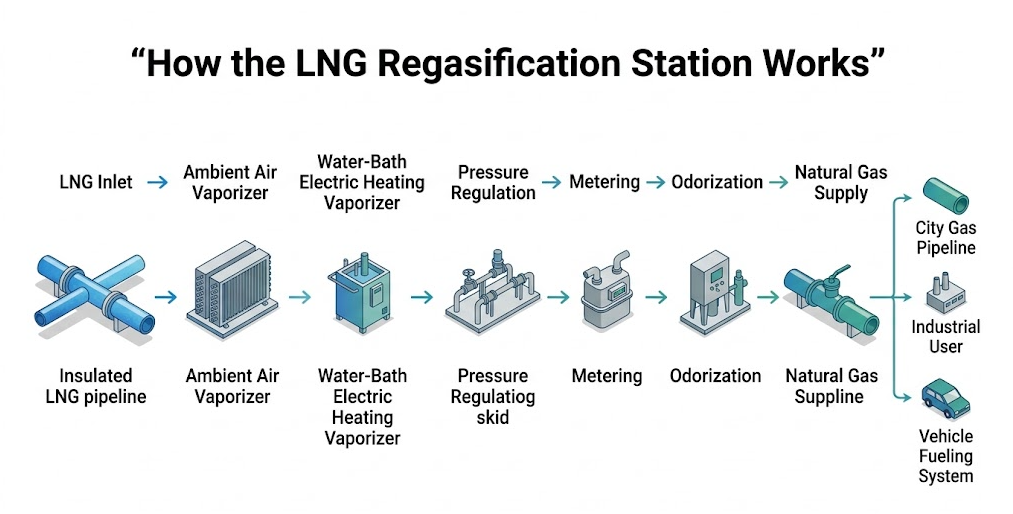

How the LNG Regasification Station Works

1. LNG enters the regasification system.

2. The LNG passes through an ambient air vaporizer and a water-bath electric heating vaporizer.

3. The vaporized natural gas passes through the pressure-regulating section.

4. The gas is metered and odorized.

5. The conditioned natural gas is delivered to a downstream user or gas pipeline.

LNG → Vaporization → Pressure Regulation → Metering → Odorization → Natural Gas Supply

Key System Capabilities

Integrated Process

The station combines LNG vaporization, natural gas pressure regulation, metering and odorization in one gas supply system.

Wide Capacity Range

Available gas supply capacity ranges from 100 to 100,000 Nm³/h to support different gas consumption requirements.

Skid-Mounted Configuration

The modular, skid-mounted configuration integrates the main process functions into a compact equipment arrangement.

Multiple Downstream Applications

The station can deliver natural gas to city gas pipelines, industrial users or vehicle fueling systems.

Applications

City Gas Supply

The station can regasify LNG and deliver conditioned natural gas to a downstream city gas pipeline.

Industrial Gas Supply

It can supply natural gas to industrial users with gas demand within the available capacity range.

Vehicle Fueling Systems

The system can also provide natural gas to downstream vehicle fueling applications.

Configure an LNG Regasification Station for Your Project

Gas supply requirements vary by application and site conditions. To discuss a suitable station configuration, please provide the following project information:

- Required gas supply capacity in Nm³/h

- Project country or installation location

- Downstream application

- Required outlet pressure

- Available power supply

- Expected operating conditions

Submit your project requirements to discuss the appropriate LNG regasification, regulating and metering solution with CIMC ENRIC.

The LNG regasification regulating and metering station from CIMC ENRIC is a modular, skid-mounted solution designed to efficiently deliver natural gas to city pipelines, industrial users, or vehicle fueling systems.

Main Markets

CIMC ENRIC has supplied regasification, regulating and metering station solutions to markets including Ghana, Jamaica, Puerto Rico, Russia, Singapore and Nigeria.

Specification

FAQ

Q: What does an LNG regasification, regulating and metering station do?

It converts LNG into natural gas through vaporization, then regulates, meters and odorizes the gas before delivery to a downstream gas user or pipeline.

Q: What is the gas supply capacity of this station?

The available gas supply capacity ranges from 100 to 100,000 Nm³/h.

Q: Which vaporization methods are used?

The system uses an ambient air vaporizer and a water-bath electric heating vaporizer.

Q: Where can the regasified natural gas be supplied?

The natural gas can be supplied to city gas pipelines, industrial users or vehicle fueling systems.

Q: What is the working medium?

The working media are LNG and natural gas.

Q:What information should I provide for a project enquiry?

Please provide the required gas supply capacity, project location, downstream application, required outlet pressure, available power supply and expected operating conditions.
